Designs for Artificial Reef Sites in the Indian River Lagoon

Martin County, Florida









Submitted to:

Kathy FitzPatrick, P.E.

Martin County Coastal Engineer

Martin County Administrative Center

2401 SE Monterey Road

Stuart, FL  34996







Prepared by:

Lee E. Harris, Ph.D., P.E.

Consulting Coastal Engineer

310 Ormond Avenue

Indialantic, FL  32903









February 2002








Project Design:  Various sizes and weights of Reef BallTM artificial reef units are available, as presented in Table 1.  Microsilica and other additives were used in the concrete to increase the strength and workability plus decrease the pH of the concrete to that of marine environment.



Table 1.  Reef BallTM Sizes, Weights, Volume & Number of Holes

Style

Width

Height

Weight

Concrete
Volume

No. of
Holes

Ultra Ball

6 feet
(1.83m)

4.5 feet
(1.37m)

4000-6000 lbs
(1814-2722 kg)

1 yard
0.76m3

29-34

Reef Ball

6 feet
(1.83m)

4 feet
(1.22m)

3000-6000 lbs
(1360-2722 kg)

0.75 yard
0.57m3

29-34

Pallet Ball

4 feet
(1.22m)

3 feet
(0.91m)

1500-2200 lbs
(680-998 kg)

0.33 yard
0.25m3

17-24

Bay Ball

3 feet
(0.91m)

2 feet
(0.61m)

375-750 lbs
(170-340 kg)

0.10 yard
0.08m3

10-16








Designs for Artificial Reef Sites in the Indian River Lagoon, Martin County, Florida



This report presents the results of diver investigations for three proposed artificial reef sites in the Indian River Lagoon in Martin County, Florida.  Data were collected by divers during field work performed in December 2001 and January 2002 for two areas:

1)two dredged holes located at the eastern end and just north of the Stuart Causeway 2)deeper areas offshore of the Martin County Indian Riverside Park.

Stuart Causeway Sites

At the eastern end of the Stuart Causeway there are two dredged holes north of the causeway, as shown in the Figure 1.  Each of these 2 sites are approximately 600 feet offshore of the Hutchinson Island shoreline.

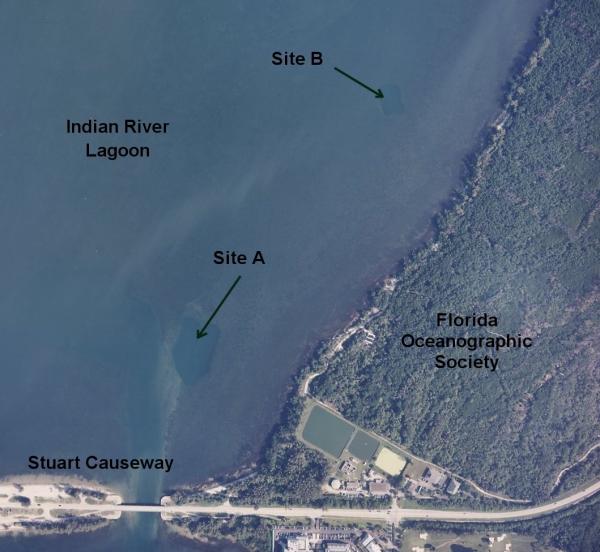

Figure 1.  Locations of the Stuart Causeway Potential Artificial Reef Sites

Site A

The southernmost site, Site A is located approximately 700 feet north and slightly east of the small eastern causeway bridge.  Figure 2 shows an enlarged aerial photograph of this site, which is roughly 400 feet long by 250 feet wide.  The actual shape is a pentagon, with the five vertices labeled as SW, S, SE, NE and NW.  Water depths are shown in Table 1.



Figure 2.  Site A

Table 1.  Water Depths Adjusted for Tide (depth in feet below MLLW datum)

Location

GPS Coordinates

Depth @ Point

Depth 50’ Inside

Depth 50’ Outside

SE

27o 12.765

80o 11.172

8.6

11.4

3.8

NE

27o 12.803

80o 11.168

7.4

11.7

4.2

NW

27o 12.790

80o 11.212

13.1

13.0

6.3

SW

27o 12.769

80o 11.216

8.2

13.0

4.7

S

27o 12.742

80o 11.177

10.7

14.6

4.7

CENTER

27o 12.770

80o 11.186

8.2

NA

NA




The water depths shown in Table 1 show that the average depth inside Site A is 12.7 feet below MLLW, with a maximum depth of 14.6 feet at the southern end.



Visual diver inspections were made for Site A on December 20, 2001 from 10am to 1pm EST.  The results of these inspections are shown in Table 2.  From the diver inspections, the bottom material for Site A consisted of sand and firm mud, with a maximum penetration by hand of 1.5 inches into the bottom.  No seagrasses were found attached or growing on the bottom within Site A.





Table 2.  Diver Inspection of Site A



Buoy Location              GPS coordinates                      Diver bottom survey findings



    SE                            27o 12.765                   Sand and firm mud, 1.5 in. penetration of hand

                                    80o 11.172                   into mud, midway between NE & SE buoy mud                                                                        sand mixture is firm, no penetration, at SE buoy                                                                         mud is softer with 1.5 in. penetration.



   NE                            27o 12.803

                                    80o 11.168                   Sand and firm mud, no seagrass, 1.5 in.                                                                         penetration into mud.



   NW                          27o 12.790

80o 11.212                   Sand and firm mud, no seagrass, 1.5 in. penetration into mud



   SW                           27o 12.769

                                    80o 11.216                   Firm mixture of sand & mud



   Due S                        27o 12.742

                                    80o 11.177                   Sand mud is firm at this location



   Center of site 27o 12.770

80o 11.186                   Firm mud, no seagrasses.



   Outer perimeter of site     N/A                       Firm sands with very little mixture of firm mud



Data collected on Thursday Dec. 20, 2001

By Kerry Dillon and Jack Glanville




Site B

Site B is located approximately 1900 feet northeast of Site A, and is approximately 600 feet offshore of Hutchinson Island.  Figure 3 shows an enlarged aerial photograph of this site, which is roughly 200 feet long by 150 feet wide.  The shape is nearly a rectangle, with the four vertices labeled as SW, SE, NE and NW.  Water depths are shown in Table 3.

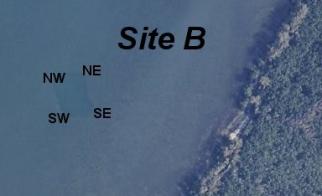

Figure 3.  Site B



Table 3.  Site B Water Depths Adjusted for Tide (depth in feet below MLLW datum)

Location

GPS Coordinates

Depth @ Point

Depth 50’ Inside

Depth 50’ Outside

SE

27o 13.130

80o 11.101

9.5

11.5

4.8

NE

27o 13.146

80o 11.122

10.5

11.9

6.0

NW

27o 13.134

80o 11.132

8.2

11.2

6.1

SW

27o 13.122

80o 11.117

8.5

11.5

6.5

CENTER

27o 13.130

80o 11.117

12.4

NA

NA



The water depths shown in Table 3 show that the average depth inside Site B is 11.7 feet below MLLW, with a minimum depth of 11.2 feet in the NW and maximum depth of 12.4 feet in the center.



Visual diver inspections were made for Site B on December 20, 2001 from 2pm to 4pm EST.  The results of these inspections are shown in Table 4.  From the diver inspections, the bottom material for Site BA consisted of soft mud, with a penetration by hand of at least 30 inches into the bottom.  No seagrasses were found attached or growing on the bottom within Site B, but the soft mud does not provide a firm foundation to support artificial reef units.








Table 4.  Diver Inspection of Site B



Buoy Location              GPS coordinates                      Diver bottom survey findings



    NE                           27o 13.146                   Soft mud, 2.5 ft. penetration of hand and arm

80o 11.122                   into mud,  unattached seagrass pieces and mangrove seeds laying on and in mud bottom

   SW                           27o 13.122                   Soft mud, at least 2.5 ft. penetration of hand and

80o 11.117                   arm into mud,  red and green unattached seagrass pieces on top of mud. Do not appear to be attached or rooted.



   SE                             27o 13.130

80o 11.101                   Soft mud at least 2.5 ft. deep



   NW                          27o 13.134

80o 11.132                   Seagrass laying on top of mud. Does not appear rooted. No substrate to attach to, just soft deep mud at least 2.5 ft. deep



   Center of site 27o 13.130

80o 11.117                   Soft mud at least 2.5 ft. deep with seagrass loosely laying ontop of mud.



   Outer perimeter of site     N/A                       Sand, shell, and hard packed mud.  Some grasses appear to be attached but are very sporadic.  Water depth was consistent 6 ft.



Data collected on Thursday Dec. 20, 2001

By Kerry Dillon and Jack Glanville








Indian Riverside Park Pier Area

The area offshore of the Indian Riverside Park was investigated for possible artificial reef sites.  Most of the area was too shallow and full of seagrasses, except for some areas around the existing pier structure.  This area in the Indian River is shown in the aerial photograph in Figure 4.

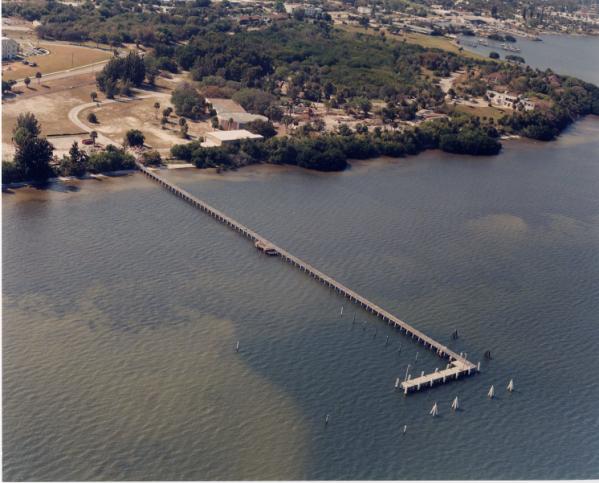

Figure 4.  Pier at Indian Riverside Park



A close-up of the pier and surrounding area surveyed for possible artificial reef sites is shown in Figure 5, with the letters designating the locations of the depth measurements and diver inspections performed on January 11, 2002.



Table 5 presents a summary of the locations and depth measurements taken on January 11, 2002.  Detailed description from diver surveys of the site are summarized in Table 6.

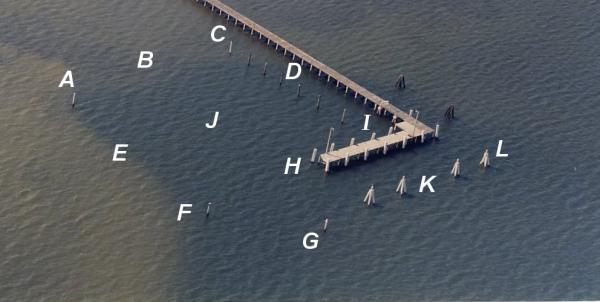

Figure 5.  Designation of Points for Survey of Pier at Indian Riverside Park



Table 5.  Locations and Depth Data in feet below MLLW



Buoy



Time

GPS  Coordinates

Water Depth

Depth 25' Inside

Depth 25' Outside

A

SW concrete piling

10:30

27 13.456

3.4

6.9

1.4





80 12.598

B

Center W Edge Basin

10:35

27 13.474

6.4

6.9

2.9





80 12.600

C

PVC piling at NW edge Basin

10:42

27 13.486

3.5

4.4

2.2





80 12.606

D

3rd wood pile from E

10:47

27 13.488

7.5

7.2

7.7





80.12.589

E

Center S edge Basin

10:54

27 13.459

2.9

7.2

1.9





80 12.587

F

Concrete Pile at SE corner Basin

11:02

27 13.462

6.4

7.2

3





80 12.570

G

Outer Channel Marker #4

11:10

27 13.472

4.8

4.4

3.4





80 12.558

H

PVC Pile at s end “L” pier section

11:20

27 13.480

8.8

8.7

NA





80 12.573

I

PVC Pile at NE corner of Basin

11:25

27 13.495

7.6

7.8

NA





80 12.579

J

Center of Basin

11:29

27 13.477

7.9

NA

NA





80 12.589

K

E of Center of “L” Section of Pier

11:45

27 13.493

5.3

8.3

3.6





80 12.566

L

NE cluster pile seaward of pier

11:50

27 13.501

4.9

6.2

4.1





80 12.565

Table 6.  Bottom Survey Notes for Pier at Indian Riverside Park



SW Piling A - Firm mud and sand at and around piling A

South Side Basin - 25’ South of the A-E-F line:  Firm sand and mud with randomly dispersed seagrasses, at the bottom of the slope is a mixture of soft sand and mud.

West of Basin - 25’West of A-B line bottom is firm sand evenly distributed seagrasses.

Southern 1/3 of Basin - 25’ North of A-E-F line and out to point G (marker 4):  Soft mud, detached accumulations of seagrass at and around pint G, bottom changes to firm sand.

Center of Basin- Along the H-J-B line to a point 25’outside the western border:  Firm sand on east and west edges of the hole.  In the deep area on the H-J-B line there is soft mud 2.5’ deep (min) hand penetration with randomly dispersed accumulations of detached seagrass.

Northern 1/3 of Basin - 25-35’ North of H-J-B line the bottom is soft mud.  Firm sand at outer edges of hole.  Random dispersed accumulations of detached seagrass.

North End of Basin - Along a line just south of the wood mooring piles.  Soft mud.  Random dispersed accumulations of detached seagrass.

Along line between the south side of the pier and the north side of the mooring piles. Bottom becomes more of a mixture of sand and mud with more firmness to it.

Along southern edge of pier a firm mixture of sand, shell and mud.

Along eastern side of pier firm sand and shell, no seagrass.

Northern side of pier out 100’ east to 10’east of 1st broken dolphin, firm sand and sporadic seagrass.

North side of the pier and east of western most broken dolphin.  Hard sandy bottom outside (north) dolphins.  South of dolphins bottom slopes down and becomes soft mud.



Figure 6.  Water Depths at Pier at Indian Riverside Park (not to scale)



Conclusions



From the diver surveys of the two sites at the east end of the Stuart Causeway in the Indian River lagoon, the southern Site A was found suitable for artificial reefs, but the northern Site B was found unsuitable.  Site B has sufficient depths, but the soft mud bottom with 30 inches and more of penetration into the bottom by hand would not provide support for artificial reef units.



The southern Site A was found to be suitable for artificial reef placement.  This site is approximately 400 feet long and 250 feet wide which is about 2.2 Acres, and has an average depth of over 12 feet below MLLW.  No seagrasses were found growing on the bottom of Site A, and the bottom is sand and firm mud, with only 1.5-inches of penetration by hand, so that sinking of reef units into the bottom would be minimal.  The adequate water depths, firm substrate, and absence of seagrasses make Site A suitable for artificial reefs.



There are some areas in the vicinity of the Indian Riverside Pier that are suitable for artificial reef deployment.  Floating docks are planned for the dredged basin south of the pier, so this area is not available for artificial reefs.  The area immediately under the pier is suitable for artificial reefs over the eastern end and “L” portion where the depths are 5 to 9 feet below MLLW.  The areas to the north and east of the pier are too shallow for artificial reefs, unless boat traffic is excluded from that area.
