Reef Ball Attachement System

Use 1 oz medical cups to create concrete plugs with any item pre-attached to be able to attach things underwater. Works for signs, markers, corals, etc.

Home|Previous Page|Next Page


60.93 Kb

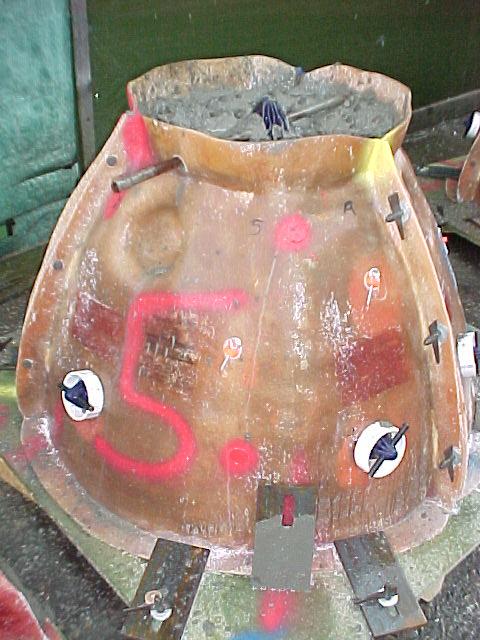

The red painted areas are the holes drilled which are plugged with #8 rubber stoppers.

66.61 Kb

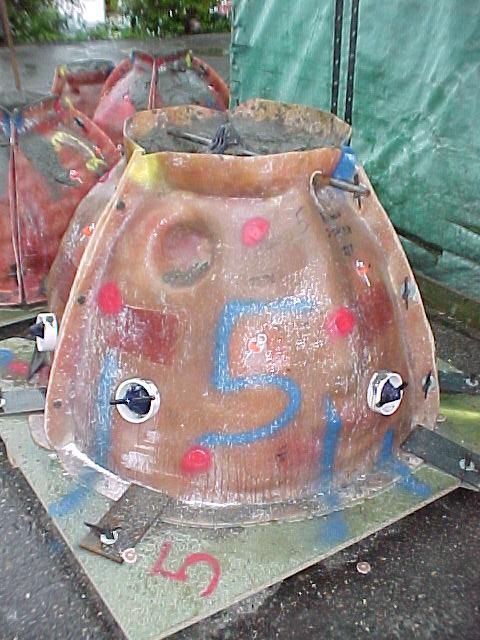

Another angle of the holes with rubber stoppers.

84.24 Kb

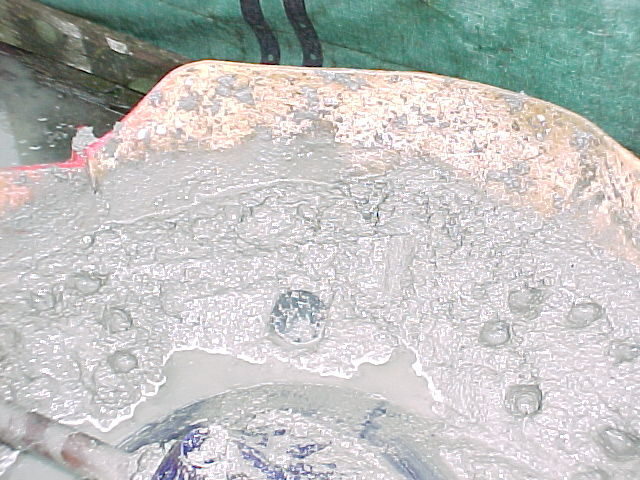

A view of the top showing where a rubber stopper was placed by hand to add top attachment points.

65.22 Kb

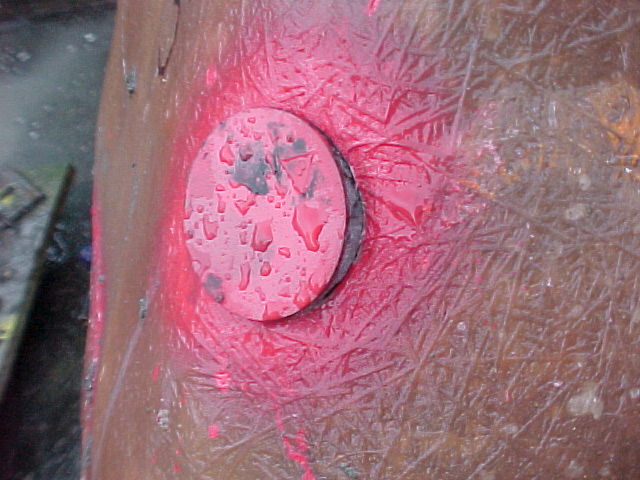

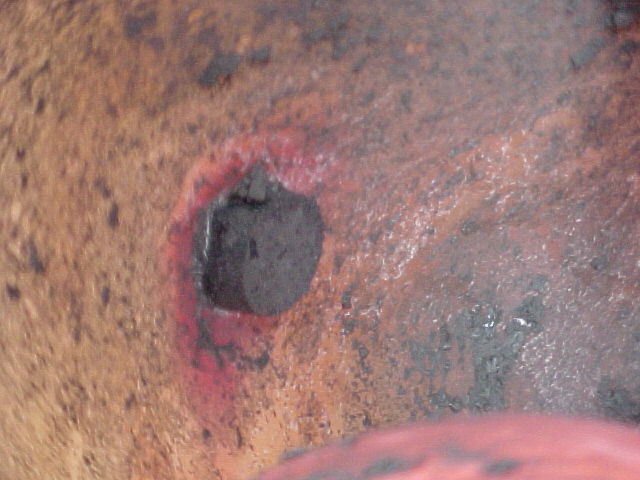

A close up of the rubber stopper in the hole.

53.14 Kb

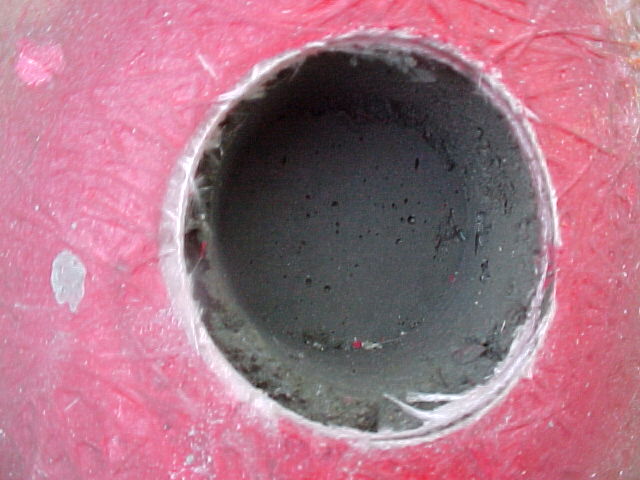

A view of the hole with the rubber stopper removed, but the fiberglass mold still in place.

53.45 Kb

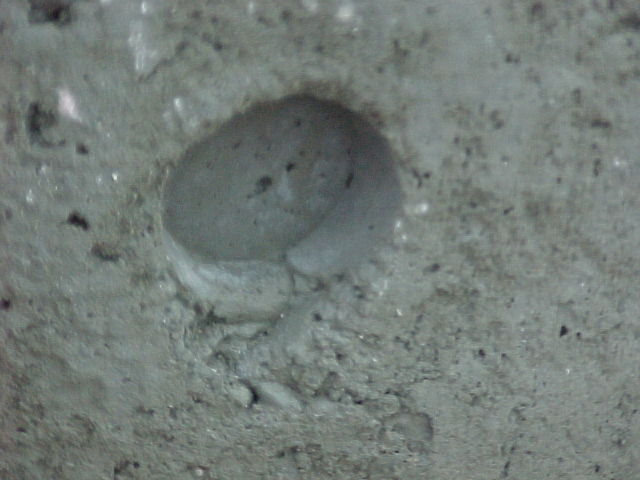

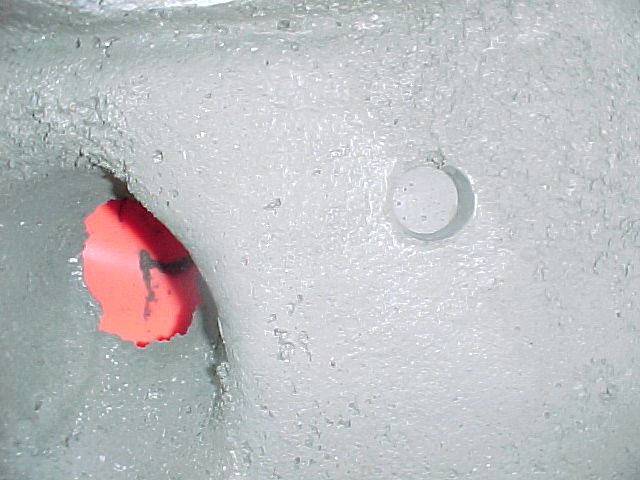

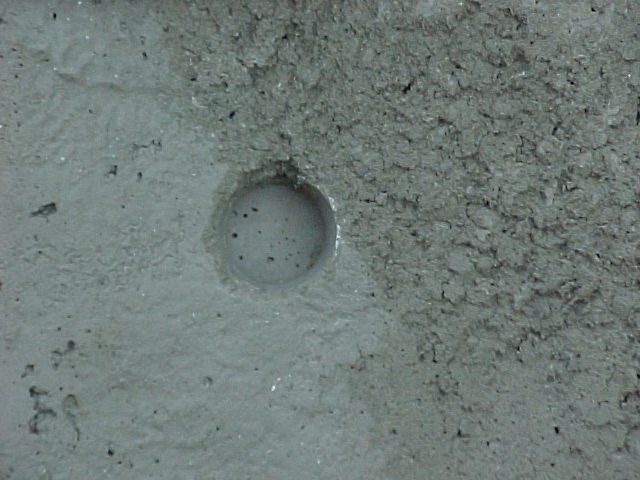

Holes produced by the stoppers.

54.45 Kb
Holes produced by the stoppers.

43.03 Kb
Holes produced by the stoppers.

63.46 Kb

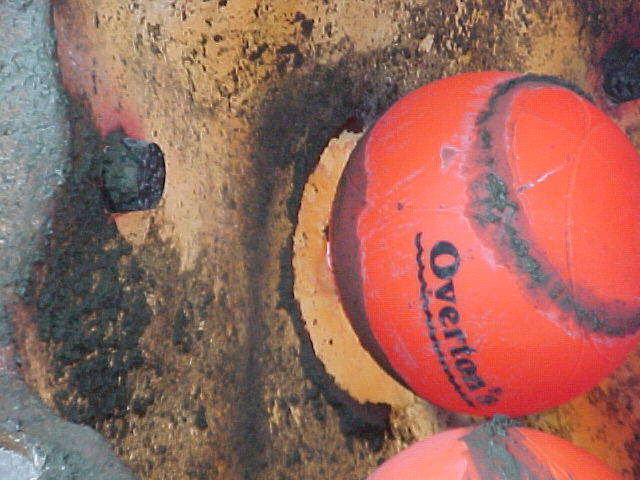

Views of the inside of the mold showing rubber stopper placement.

53.83 Kb
Views of the inside of the mold showing rubber stopper placement.

73.03 Kb

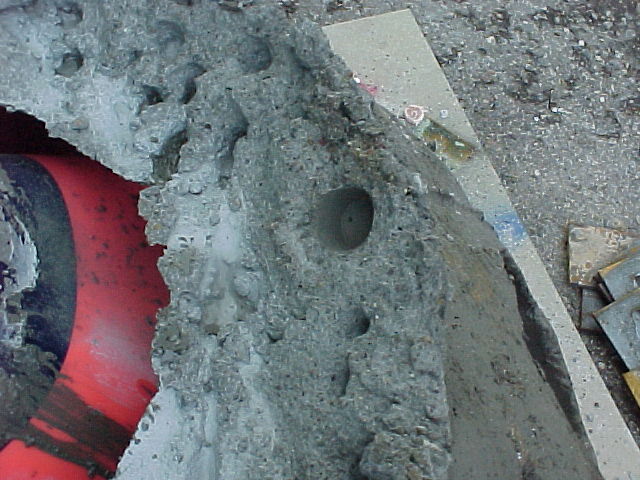

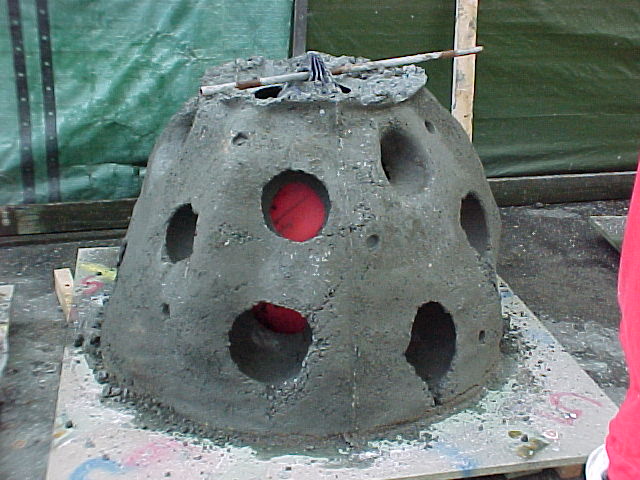

Look close to see the holes created by the stoppers.

77.11 Kb
Another view of the manually placed top stopper.
