Marriott Grand Cayman Submerged Breakwater Reef Ball Project Construction Photos

Photos and comments byTodd Barber. Construction by Hadsphaltic. Training by RBDG and Reef Innovations. Pictures available in High Resolution from reefball@reefball.com

Home|Previous Page|Next Page

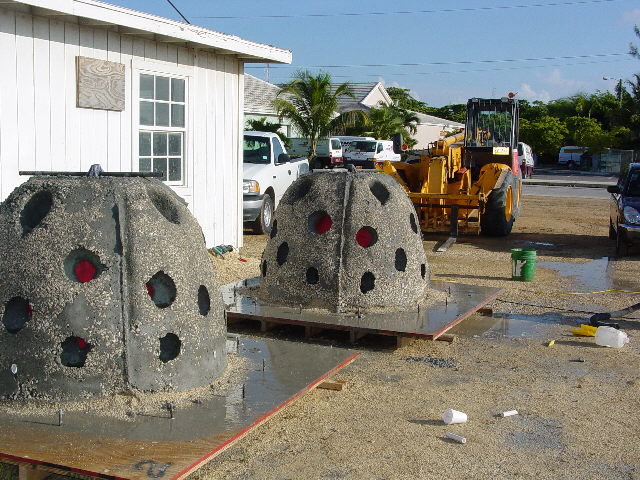

dsc01642

101.15 Kb
8/13/02 12:10:05 PM
640 x 480
dsc01643

167.59 Kb
8/13/02 12:10:07 PM
640 x 480

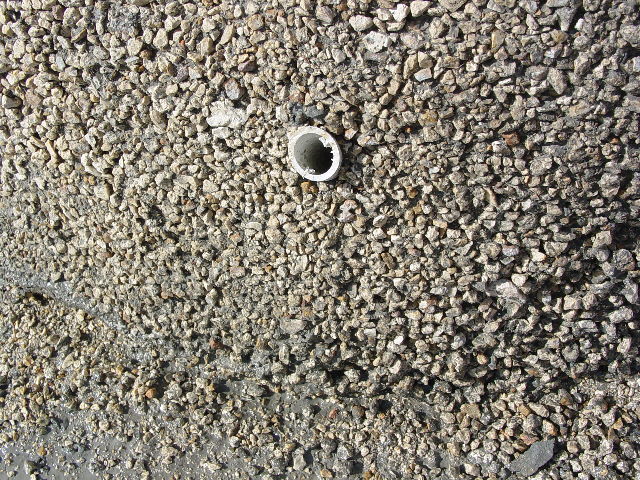

PVC pipes were embedded in the Reef Balls so that fiberglass rebar anchors could be used to attach these breakwater units to the seafloor.
dsc01644

101.37 Kb
8/13/02 12:10:10 PM
640 x 480

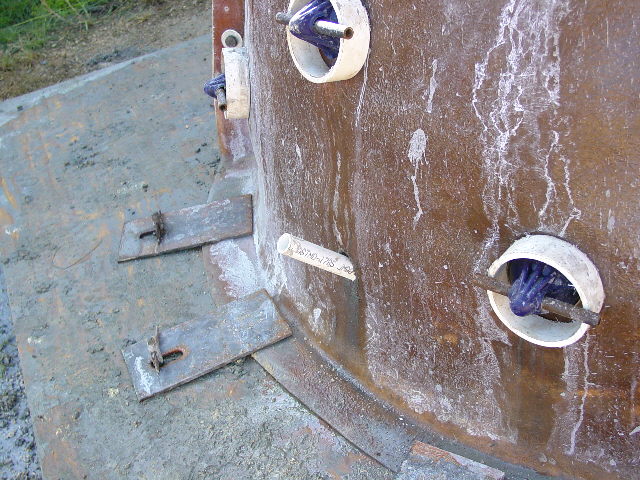

Here's how the PVC pipe is cast into the Reef Balls. It is cut off at the concrete level before removing the mold shells.
dsc01645

53.30 Kb
8/13/02 12:10:12 PM
640 x 480

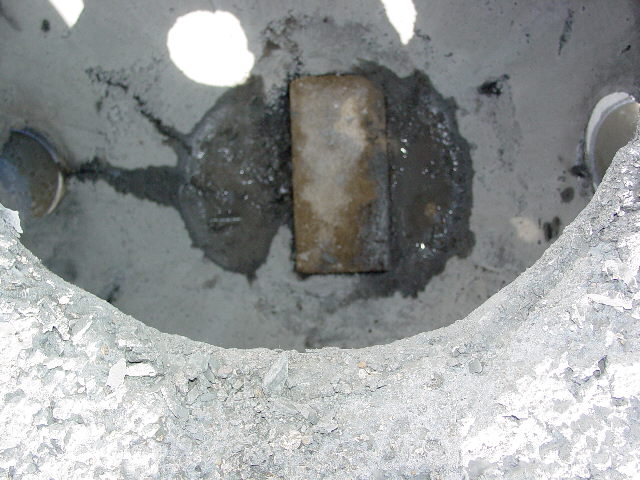

We placed an 8" concrete brick into the bottom of the molds to add an extra 12 inches of solid concrete to the bottom of the Reef Balls for extra stability.
dsc01646

69.82 Kb
8/13/02 12:10:14 PM
640 x 480
dsc01647

134.30 Kb
8/13/02 12:10:16 PM
640 x 480

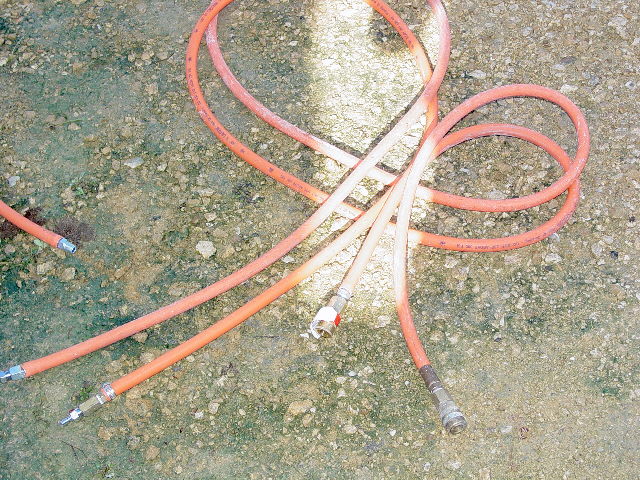

These hoses are used to attach scuba tanks to underwater drills so we can drill the holes for the fiberglass rebar anchors.
dsc01648

99.70 Kb
8/13/02 12:10:19 PM
640 x 480

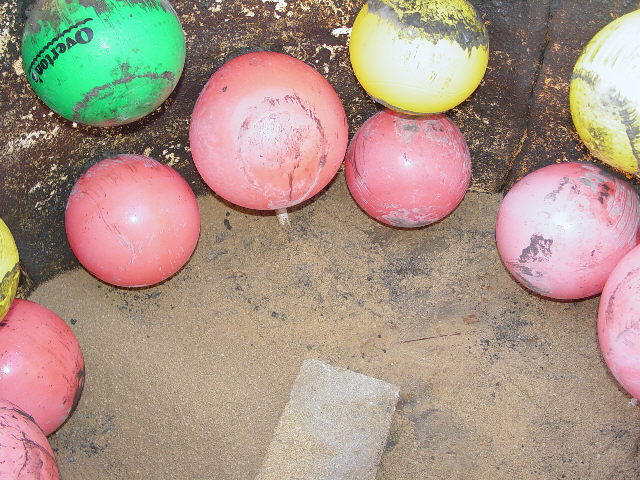

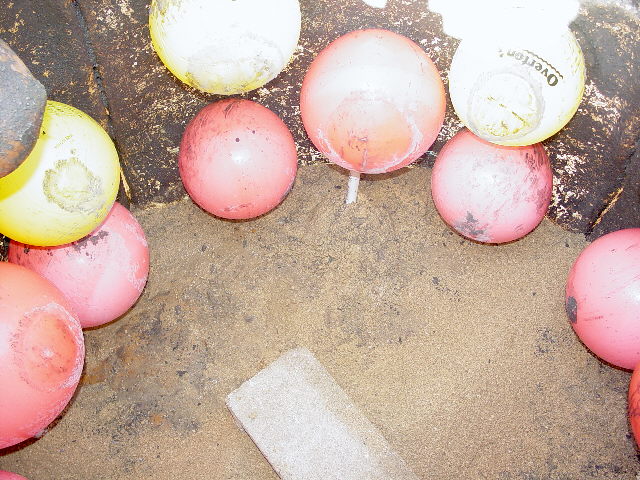

Here is the inside of a mold set up for casting with the brick, sand on the bottom to make a lobster hole going to the brick and all the side balls in place.
dsc01649

99.46 Kb
8/13/02 12:10:21 PM
640 x 480
dsc01650

130.77 Kb
8/13/02 12:10:23 PM
640 x 480

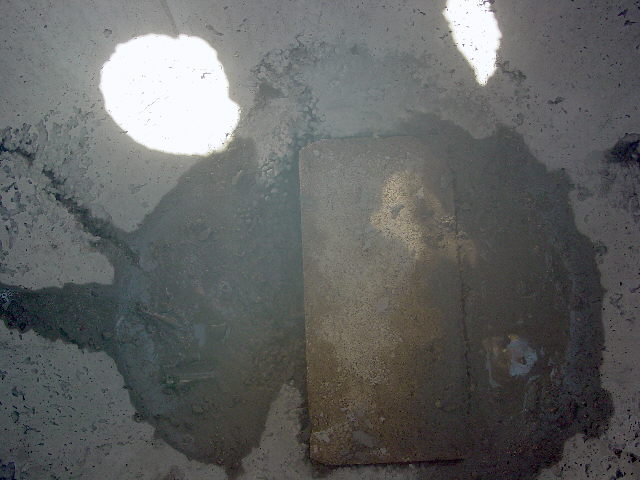

We took measurements of the hole sizes to make final adjustments before we went into large scale production
