Porto Mari Reef Ball Project

March 9-18, 2001

Home|Previous Page|Next Page

dsc01683

393.92 Kb

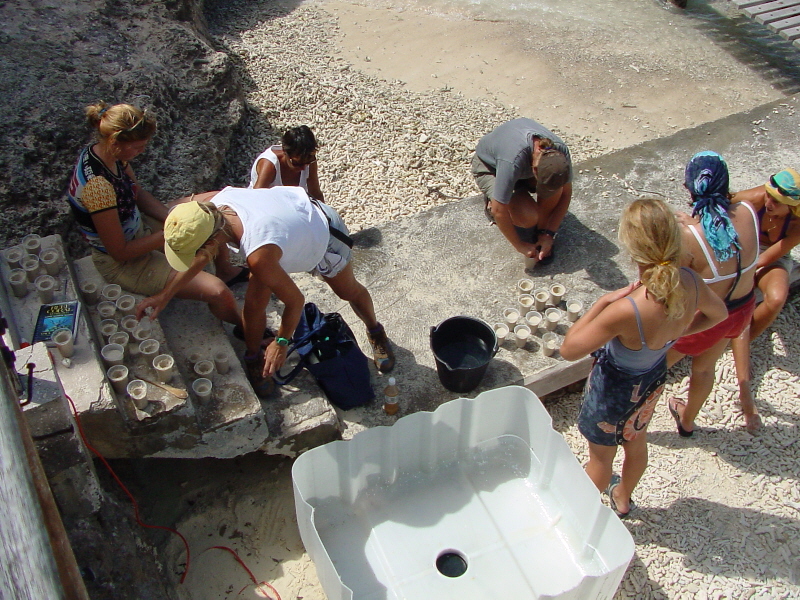

The first day that we set up the tanks to hold our corals while we stablized them for transplant onto the Reef Balls, everyone learned a quick lesson in playing in the sand and aquariums.
dsc01684

331.58 Kb

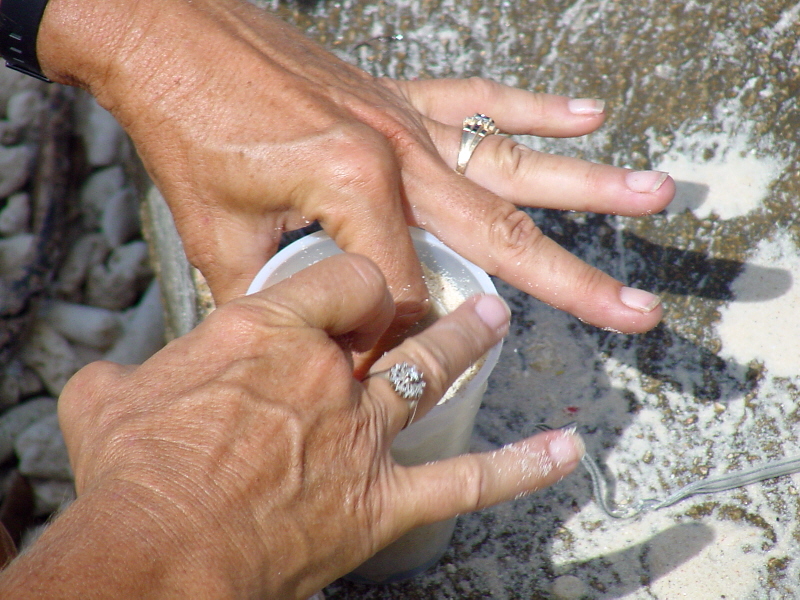

Learning to make a sand mold was fun and easy.
dsc01685

231.66 Kb

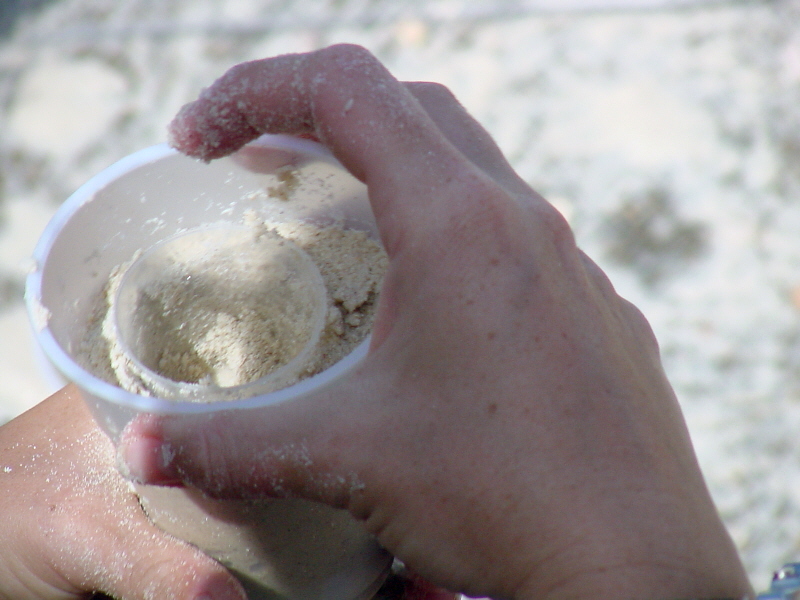

When shaped properly, it fits perfectly into a Reef Ball adapter plug hole and allows the coral to be embedded in quick setting concrete specially designed for the purpose.

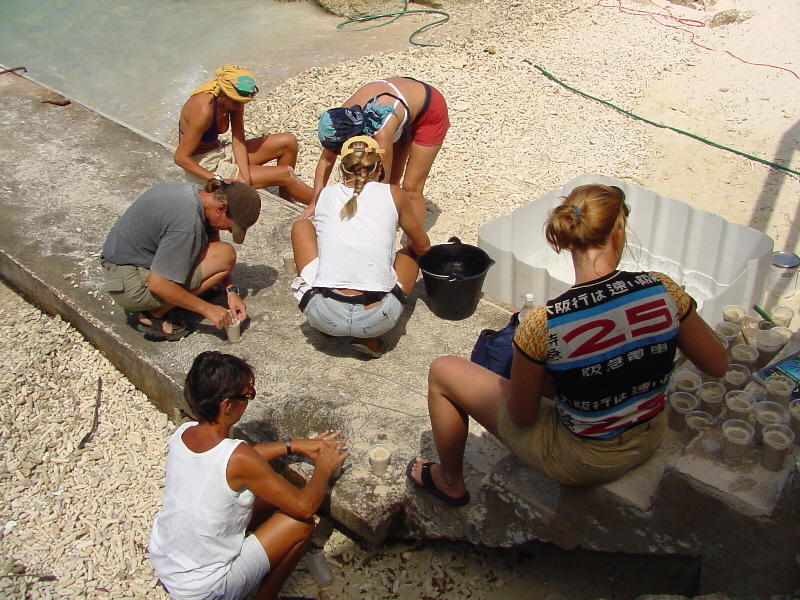

dsc01686

397.08 Kb
The team springs to action to make several hundred molds.
dsc01688

48.31 Kb

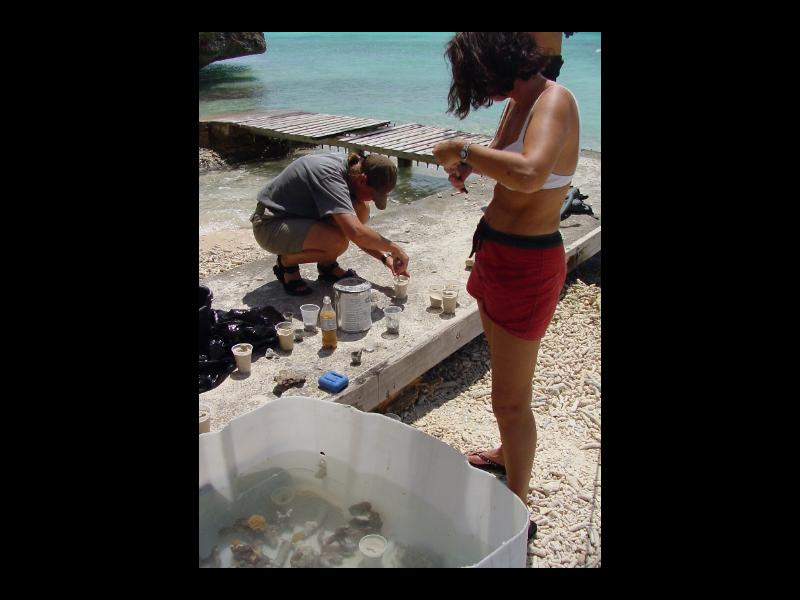

The process continues and the volunteers get faster and faster.
dsc01689

45.32 Kb

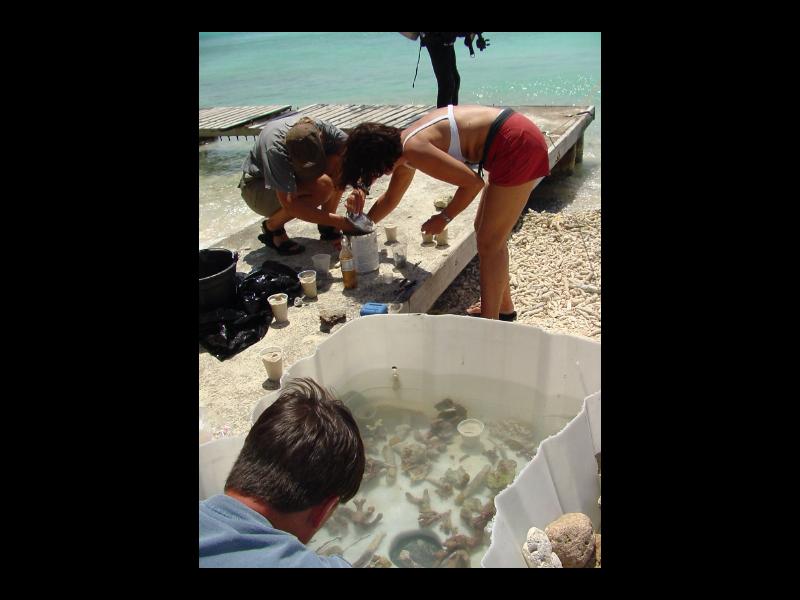

Finally, the volunteers learn how to stablize natural fragments in the plugs so that instead of dying in the sand after the hurricane, they can be saved to grow into heathy adult corals creating a natural reef system.
dsc01690

453.25 Kb

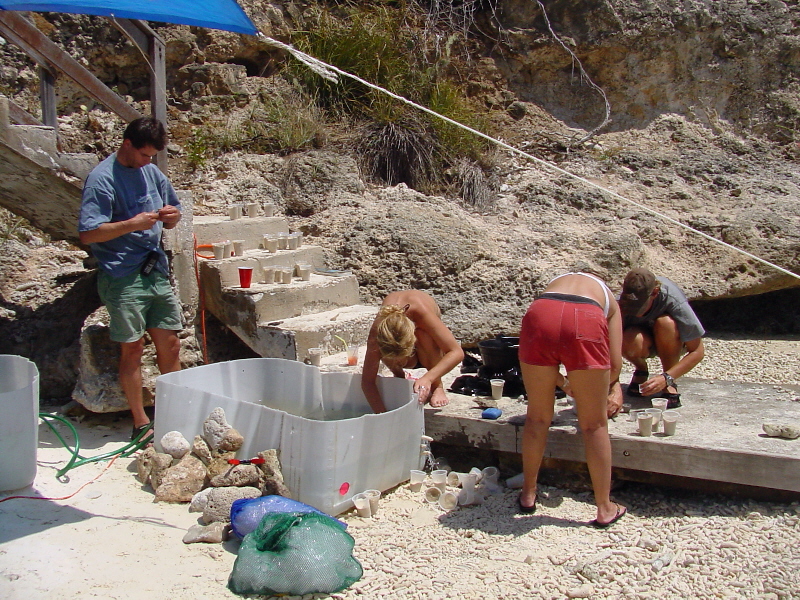

Two tanks are set up, one for the unprocessed fragments and the other for the fragments ready for transplant.
dsc01691

402.94 Kb

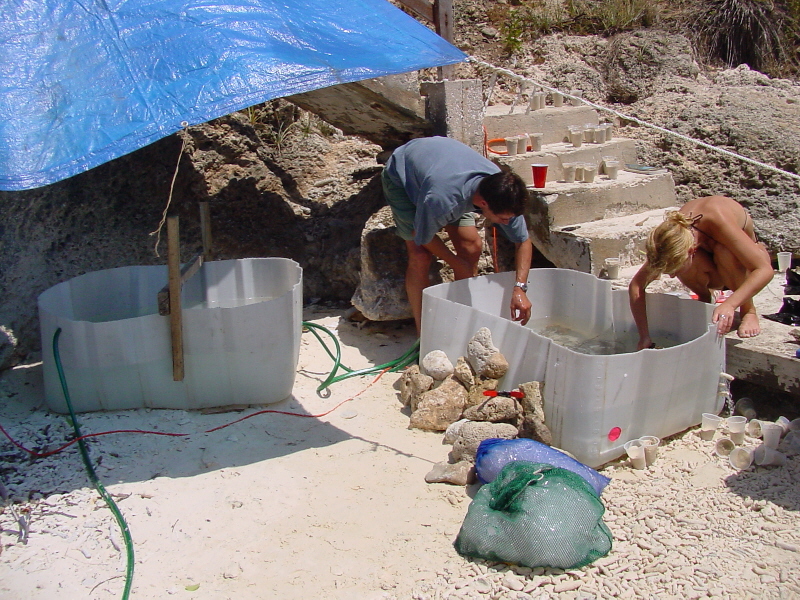

Water is supplied directly from the sea so no filtration system is required, just shade to make sure the coral's don't get a sunburn.
dsc01692

375.58 Kb

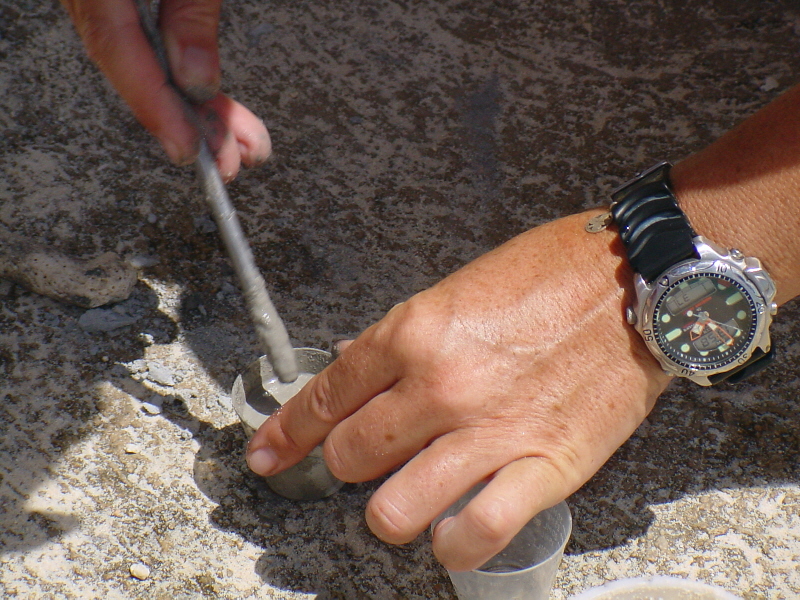

Learning to mix concrete for the plugs takes some practice. It has to be just right without too much water. A special mix design makes it harden in 3 minutes....just enough time to plant a coral and get in back into the tank for full curing without stressing the coral. Of course, microsilica and the other trademarked Reef Ball admixtures are used even in the tiny plugs.

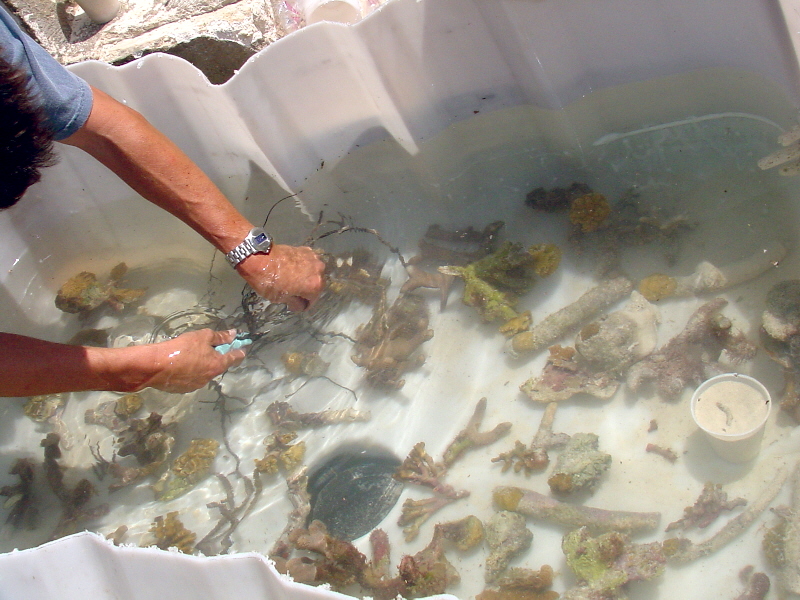

dsc01693

308.93 Kb
The first collection trip, the volunteers gathered dying corals and learned how to spot the ones that would not survive naturally. They also learned that they could not allow the different corals to touch each other so that they did not have the opportunity to sting each other.
dsc01694

40.46 Kb
Making your first successful plug is a very satisfying moment. These divers will never bump a coral by accident again!
dsc01696

366.60 Kb

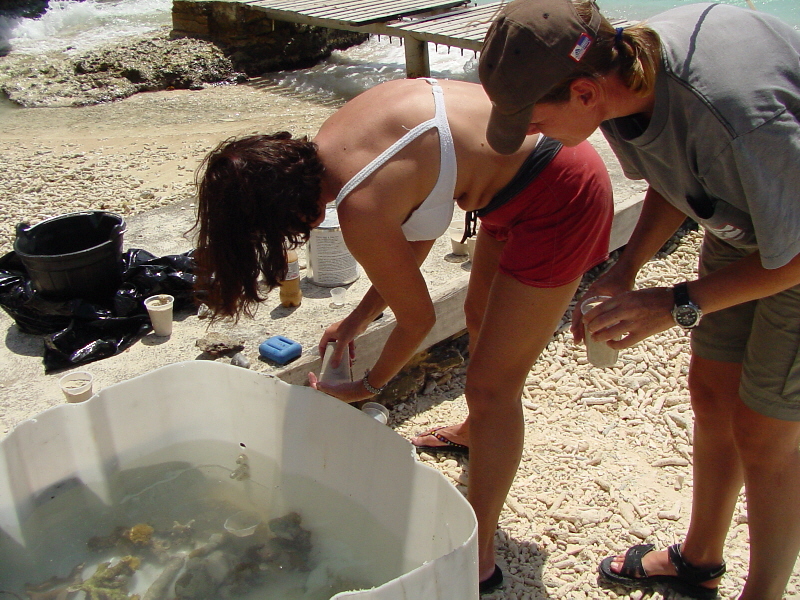

Rinsing the coral after the plug is fully hardened before placing the in finishing tank is critical to removing the slime which the coral generated to protect itself for the brief moments when it was set in the plug.
dsc01697

403.75 Kb
Nina suggested arranging the corals roughly by species type to make counting them easier. Of course, Nina likes to scrub Reef Ball bases to a waxing shine.
dsc01698

393.16 Kb
An acropora fragment (common elkhorn coral) was a prized find since the area used to be abundant with this species before the storm. The fast growing nature of the acropora family will bring quick micro habitats to the reef system.
dsc01699

390.44 Kb

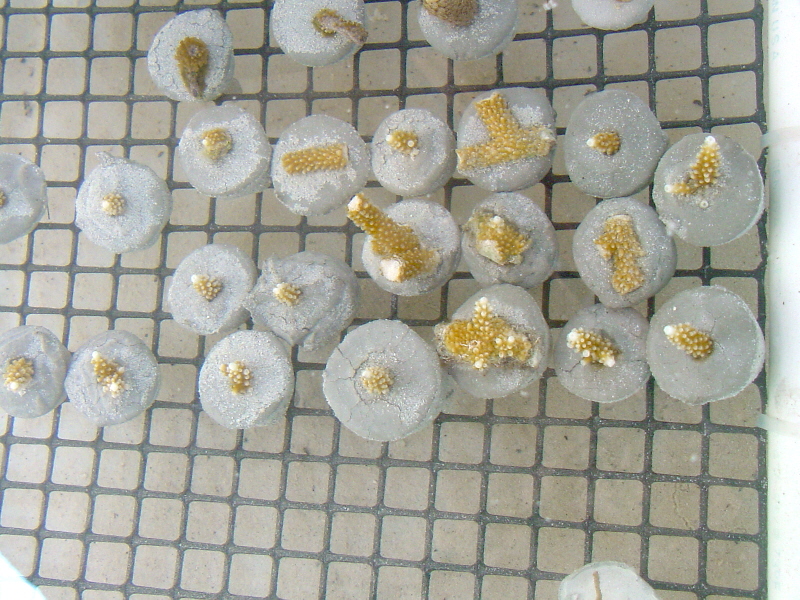

There are a variety of methods of setting the acropora into the plugs to make a more stable base. Pioneering work on Reef Balls was done with acropora and brain corals in Puerto Rico by scientists (Dr. Austin Kirby Bowden) in 1996.
dsc01700

397.61 Kb

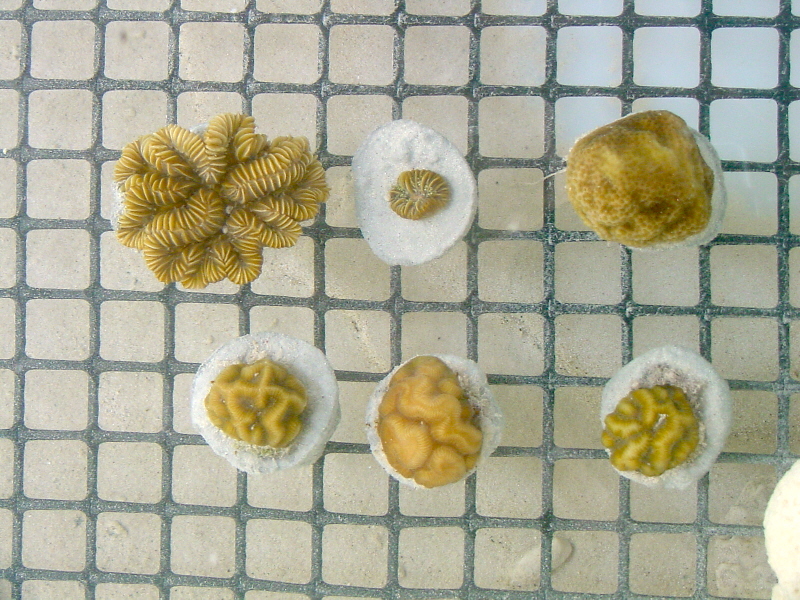

Here are several types of brain corals which were cultivated, not propogated.

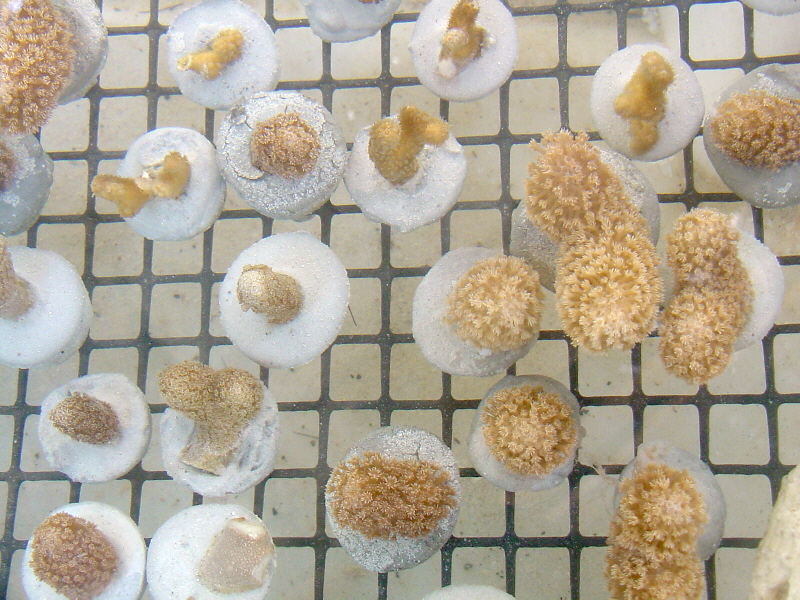

dsc01701

396.08 Kb
Finger corals, (Porites) are good complexity builders.
dsc01702

376.25 Kb

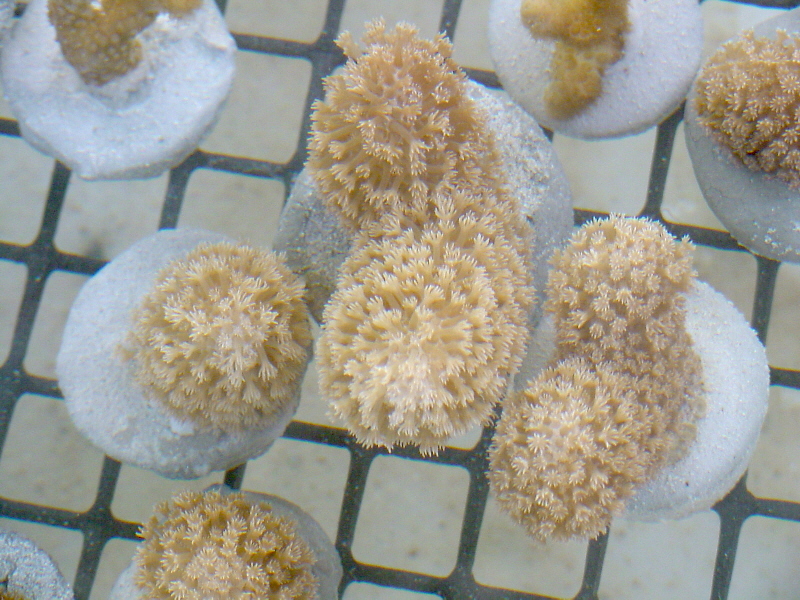

Look closely at the extended polps...they were happy even with the short stay in the tank.
dsc01703

400.84 Kb

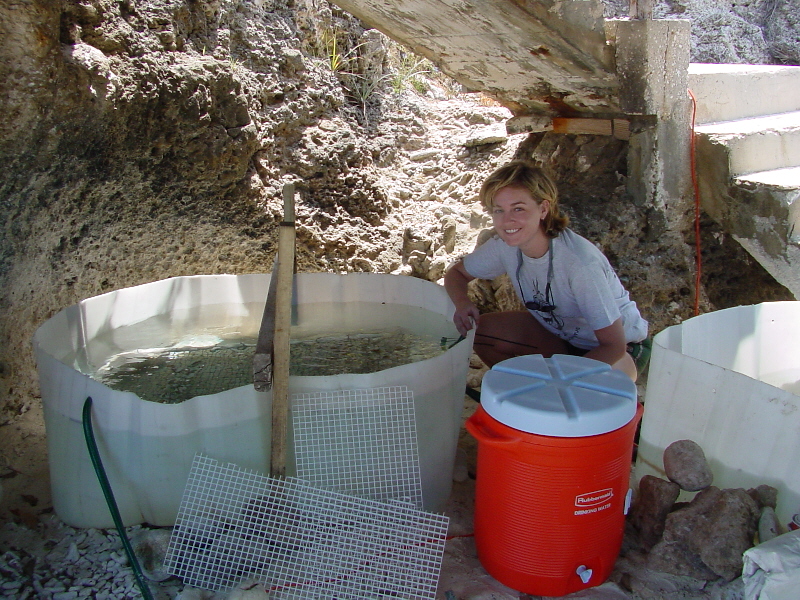

Nina proudly shows off the team's work.
dsc01704

413.35 Kb
Tourists at the resort kept stopping by seeing how the work was going, they loved what the group was doing.

Page 2 of 4
