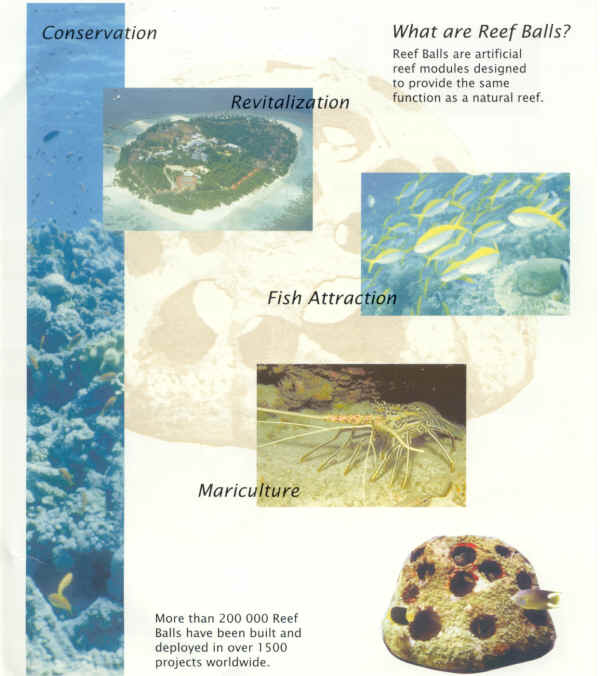

What are Reef Balls?

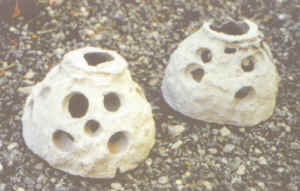

Reef Balls are artificial reef modules with form and function designed to be as close to nature as possible. They are made from concrete poured into a fiberglass mold containing a central Polyform buoy and various inflatable side balls that provide holes and cavities.
MariLim is authorized Reef Ball contractor for
We provide all kinds of service including
training, planning, manufacturing,
deployment, and monitoring.
Availability
These are the most common dimensions and their approximate parameters (width height):
| Name | Size (m) | Holes | Weight (kg) |
| Oyster | 0.5 x 0.3 | 6-8 | 11-20 |
| Lo-Pro | 0.6 x 0.5 | 6-10 | 23-40 |
| Bay | 0.9 x 0.6 | 10-16 | 170-340 |
| Pallet | 1.2 x 0.9 | 17-24 | 680-1000 |
| Reef | 1.8 x 1.2 | 29-34 | 1360-2200 |
| Ultra | 1.8 x 1.4 | 29-34 | 1800-2700 |
Features
Marine friendly concrete
Concrete with a pH similar to seawater makes Reef Balls best suitable for settlement of marine life. A specific concrete admixture gives the modules high strength.
Floating deployment
The Polyform buoy needed to build the modules can be used to keep them afloat for towing and safe placement.
Unique hole size & placement
With a variable size, shape, and number of holes, Reef Balls imitate nature to a great extent.
Surface textures
Different methods of surface treatment enhance the settlement of larvae and other small life forms. Thousands of small pits or a rough texture can easily be modeled.
Stability
More than half of the weight is in the lower part of the module near the sea floor. This enables Reef Balls to withstand heavy storms even in shallow waters.
